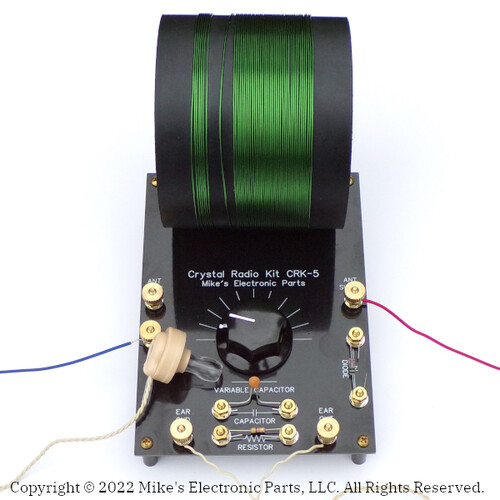

Solderless Crystal Radio Kit 5

Crystal Radio Kit 5 Manual

Limit 6 per order. If you would like to purchase more than 6 kits, please place multiple orders. We can only ship 6 of these kits per order.

Price: $50.99 Each

Part Number: CRK-5

In Stock

Description

All brass hardware. Large 3 1/2 inch air coil. 30 feet of antenna wire. Even includes a wrench and screwdriver.

Crystal Radio Kit 5 is a great way to get started in electronics and radio building. This is a fun and simple project for both beginners and expert builders alike. Everything needed to build a fully functional radio, including an antenna and ground wire, is included in the kit. Easy to assemble with no soldering required. Crystal Radio Kit 5 is a great project to build with your child or grandchild, scout groups and schools.

Please download a copy of the Crystal Radio Kit 5 Manual (assembly instructions) prior to ordering to familiarize yourself with the kit. Crystal Radio Kit 5 Manual

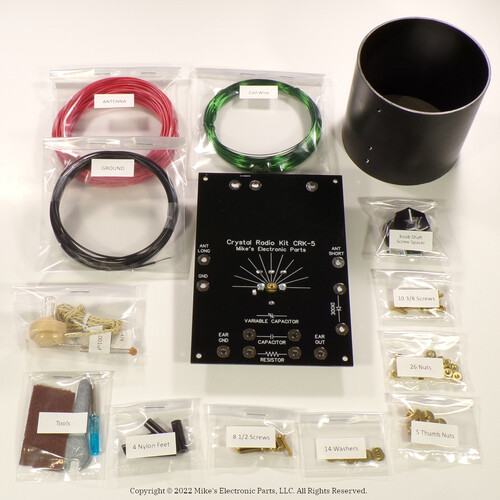

Parts Included In Crystal Radio Kit 5:
1 – Circuit Board
1 – Variable Capacitor Pre-soldered To Circuit Board
1 – 1N60 Germanium Diode
1 – .001uf Capacitor
1 – 47K Resistor
1 – Ceramic Earphone
1 – Knob with Shaft and Screw
1 – 1/8” Spacer
10 – 3/8” #4 Screws
8 – 1/2" #4 Screws
5 – #4 Thumb Nuts
26 – #4 Nuts
14 – #4 Washers
4 – Nylon Feet
1 – Coil Form
1 – Spool of Coil Wire
1 – ~30 feet Antenna Wire
1 – ~10 feet Ground Wire
1 – Small Piece of Sandpaper
1 – Philips Screwdriver
1 – 1/4” Wrench

Tools Required:
Wire cutters or finger nail clippers
1/8” Jewelers Screwdriver

Audio Amplifier Kit 2 (sold separately) was designed to match crystal radio kits and makes a great add on kit.
Crystal Radio Kit with Audio Amplifier Kit

The kit contains small parts that may be a choking hazard. Adult supervision is always advised while building the radio kit.

Crystal Radio Kit Schematic
