TA7642 AM Radio IC

$2.97

SKU: TA7642 Category:

Description

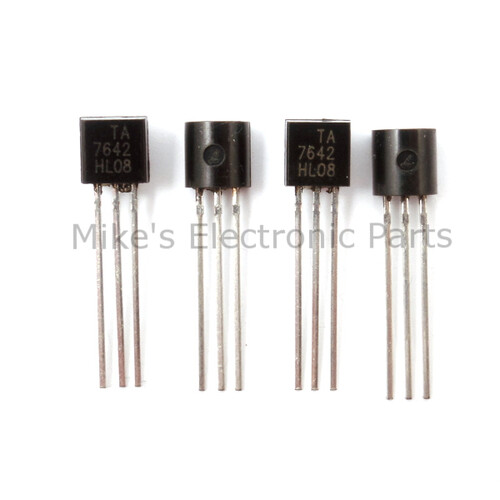

The TA7642 is a AM radio receiver IC which has automatic gain and up to 72 db gain. It is cased in a TO-92 Case that looks like a transistor. The TA-7642 runs on 1.1 to 1.8 volts so a single 1 1/2 volt battery will work. The TA7642 needs very few external parts to build an AM radio. The TA-7642 needs a tuning Capacitor and Ferrite Rod Coil or also known as a loopstick antenna we sell both items.

The YS414, TA7642, UTC7642, CD7642 and KM484 are the same as the MK484 only different manufactures.

Internal Circuit Diagram for the MK484 same as the TA7642.
