MK484 AM Radio Kit 7


MK484 AM Radio Kit 7 Manual

If you are unsure which options to choose, the default 680uh Tap 470uh, Ceramic Earphone and MK484 Radio IC is the standard build.

See below for additional information.

SKU: MK484-7 Category: Tag:

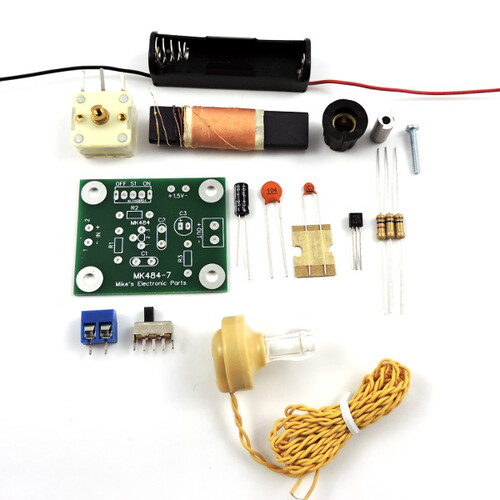

The MK484 AM Radio Kit 7 is a simple AM broadcast band receiver kit designed for the MK484 radio IC. This kit is not a beginners kit. MK484 Radio Kit 7 does require soldering and the ability to read a schematic. The kit is designed to allow a modular radio build. The RF tuning section is left off board to accommodate a variety of coil and capacitor combinations. The audio output can be connected directly to a high impedance earphone or headphone. We have tested this kit with magnetic and piezoelectric headsets 2,000 Ohms and higher with good results. The audio output could also be fed directly to an audio amplifier.

The circuit board is approximately 2″ by 1 5/8″. The mounting holes are sized for #6 screws.

MK484 Radio Kit 7 has three coil choices:

  • 680uh round rod coil
    No taps.
    Ideal when not using an antenna or when you intend to inductively couple the antenna.
  • 680uh 470uh tap coil
    Tap at 470uh.
    Although an antenna is not required, the tap is ideal for use with an antenna.
  • 788uh with center tap coil
    Multiple taps to allow some experimentation.
    The coil has one tap 10 turns from the end and one at the center.
    Can be used with or without an antenna.

MK484 Radio Kit 7 has two earphone and two headphone options:

The MK484 Kit is a TRF ( Tuned Radio Frequency, Tuned RF ) type receiver. This the most basic type of radio receiver with no regeneration or re-genitive feedback. The variable capacitor and antenna coil form a “Tank” circuit that tunes the radio stations frequency then the MK484 amplifies the radio stations radio frequency then “Rectifies” (Converts to Audio) it then amplifies the audio and powers the Earphone.

The MK484 family of radio integrated circuits are based off the ZN414 from the 1970s. There have been several manufactures of replacement integrated circuits for the ZN414. The default radio IC included with the kit is an original MK484, not a TA7642 as seen in many other kits. We currently supply several alternate MK484 radio integrated circuits. Any of these can be substituted in the circuit for the MK484. From our testing and customer feedback, the KM484 (not MK484) has the highest overall gain. However, it tends to fall into oscillation easily. The CD7642, TA7642, UTC7642, and YS414 have a gain just below the MK484. Feel free to comment in the discussions below to let us and others know your testing results and opinions of the different AM radio integrated circuits.


There are no reviews yet.

Be the first to review “MK484 AM Radio Kit 7”

Your email address will not be published. Required fields are marked *

Have a question or something to discuss?

Michael Maddex
December 13, 2018

Could a different Loopstick and Variable Capacitor combination be used with this kit to receive a Short Wave Band(s)? I a specifically curious about using the current parts that you stock.

Mike Lowe
December 13, 2018

The MK-484 should work up to about 3 MHz. I believe it also only tunes AM signals, so no SSB. Within those parameters, there are a couple of things you can try. With the 680/470 coil, try using the 470 uh tap location rather than the full length of the coil. You can also slide the coil slowly off the end of the ferrite rod to increase the tuned frequency.

Michael Maddex
December 15, 2018

Thanks, Mike. I am using that coil and will give your suggestions a try. This site and your products are great.
