YS414 AM Radio IC

$2.97

SKU: YS414 Category:

Description

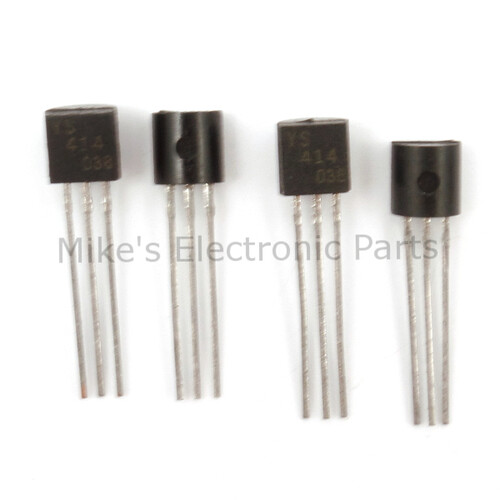

The YS414 is a AM radio receiver IC which has automatic gain and up to 72 db gain. It is cased in a TO-92 Case that looks like a transistor. The YS-414 runs on 1.1 to 1.8 volts so a single 1 1/2 volt battery will work. The YS414 needs very few external parts to build an AM radio. The YS-414 needs a tuning Capacitor and Ferrite Rod Coil or also known as a loopstick antenna we sell both items.

The YS414, TA7642, UTC7642, CD7642 and KM484 are the same as the MK484 only different manufactures.

Internal Circuit Diagram for the MK484 same as the YS414.
