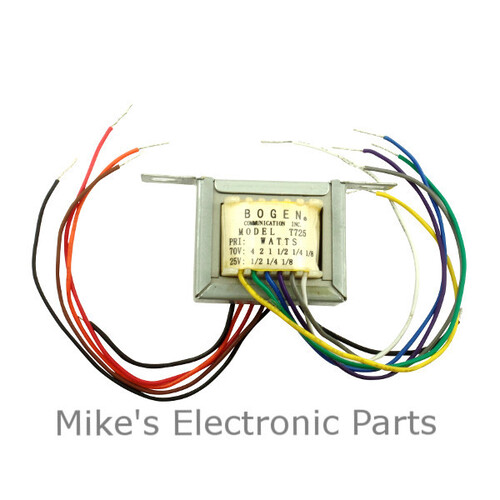

Bogen T725 Audio Transformer

$11.99

Only 5 left in stock

SKU: BOGEN-T725 Category:

Description

The Bogen T725 Audio Transformer is an excellent audio matching transformer for your crystal radio. This allows you to use lower impedance headphones with your crystal radio set.

This Bogen T725 has 3 black wires. The outer two black wires are 8 ohms. The inner black wire is the common (ground) connection.

Bogen T725 Specs:

Color Impedance (Ohms)
White 40K
Gray 20K
Violet 10K
Blue 5K
Green 2.5K
Yellow 1.2K
Orange 600
Red 300
Brown 150
Inner Black Common
Far left black to far right black 8 ohms

Reviews

There are no reviews yet.

Be the first to review “Bogen T725 Audio Transformer”

Your email address will not be published. Required fields are marked *

Have a question or something to discuss?


Customer
DLH
November 16, 2017

o1A tube output transformer to speaker
Could this transformer be used in a 01A tube type vintage radio for impedance matching to a speaker?

Support
Mike Lowe
November 16, 2017

I do not know. However, if your circuit is within the specs of the transformer you should be ok. The spec sheet can be found here https://www.bogen.com/products/pdfs/specialelectronicspdfs/WMT1As.pdf
