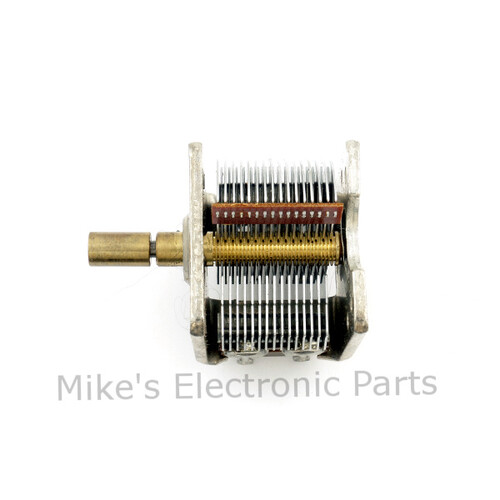

384pf Air Variable Capacitor with 8:1 planetary reduction drive

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$22.99

SKU: VarCapAir384-8to1 Category:

Description

This is a 384pf Air Variable Capacitor with 8:1 planetary reduction drive. There are 4 4-40 holes on bottom and 2 6-32 holes on front for mounting.

Minimum capacitance: ~15pf

1 review for 384pf Air Variable Capacitor with 8:1 planetary reduction drive

  1. Rated 5 out of 5

    (verified owner)

    Very good quality tuning capacitor with reduction drive…will work great on on the Telefunken 3 coil crystal radio that I am building!

Add a review

Your email address will not be published. Required fields are marked *

Have a question or something to discuss?


Guest
Sean
January 26, 2016

What voltage is this good to? I’m looking at making something that needs at least 1000v breakdown, preferably 2000v.

Support
Mike Lowe
January 26, 2016

The VarCapAir384-8to1 is rated 350 Vrms max.

Guest
Sammy Reed
April 27, 2016

What is the capacitance range of this capacitor? (Min. and max. pf)

Support
Mike Lowe
April 28, 2016

The capacitance range is 15pf to 384pf.

Guest
Sammy Reed
April 28, 2016

Thanks!
